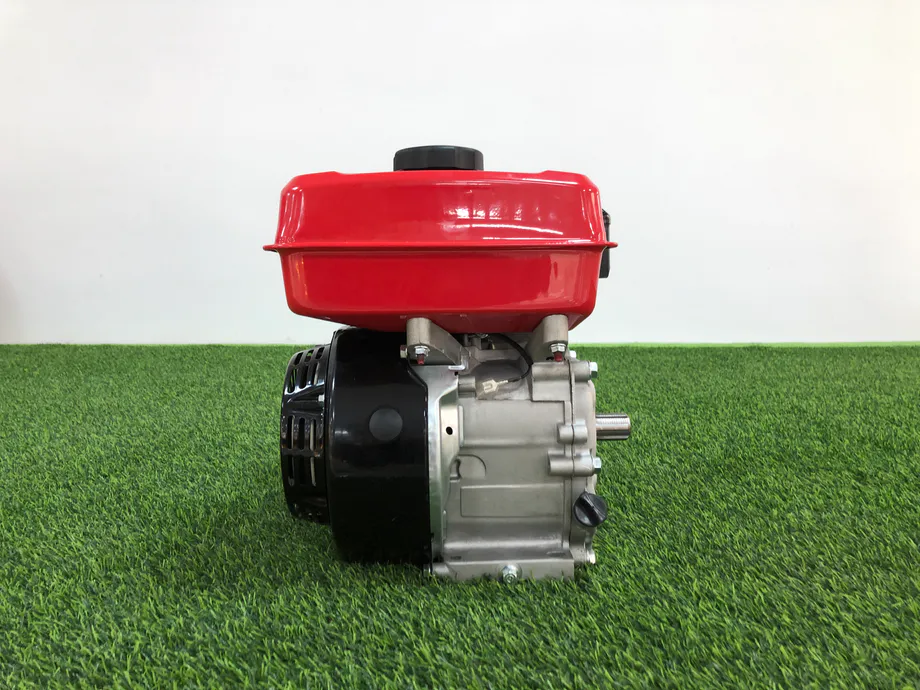

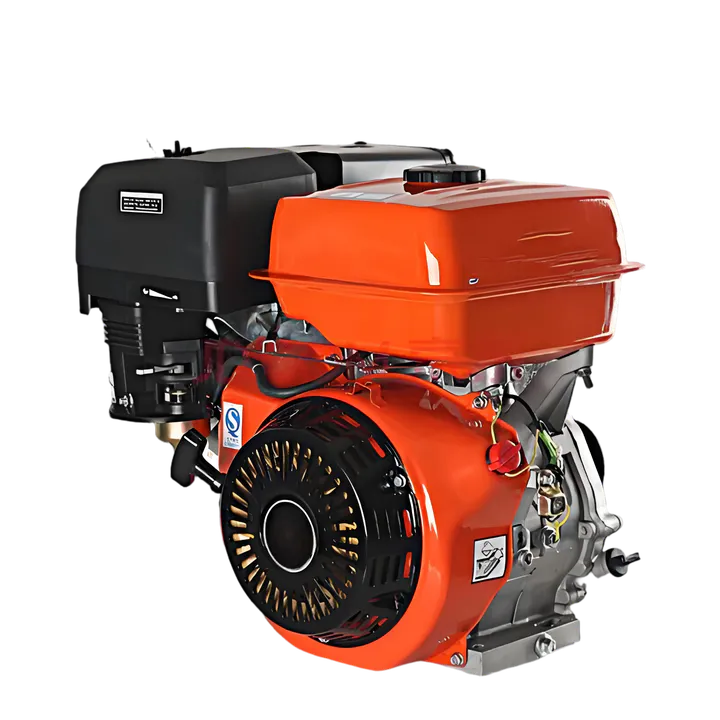

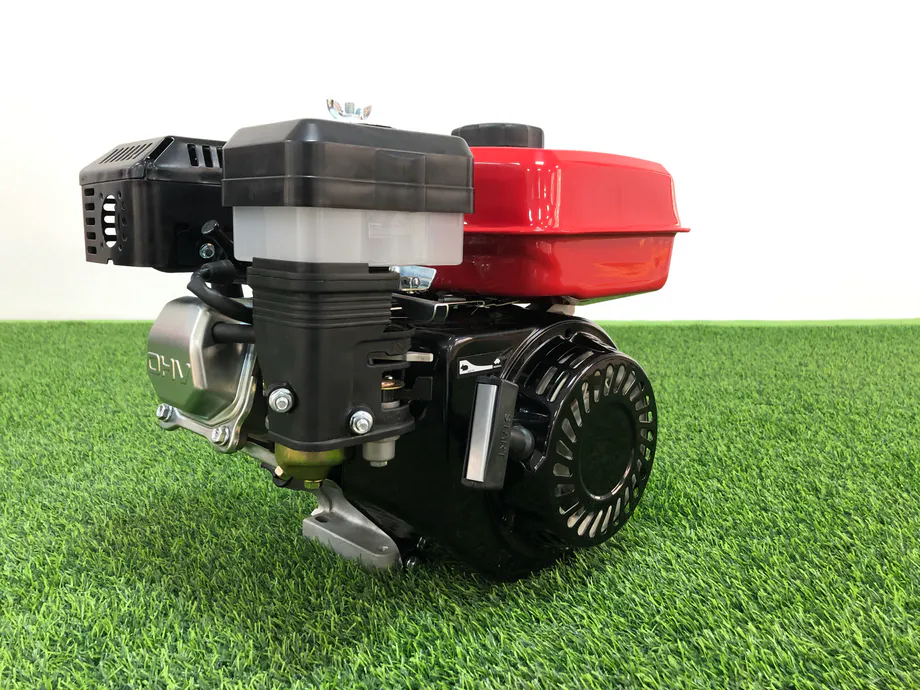

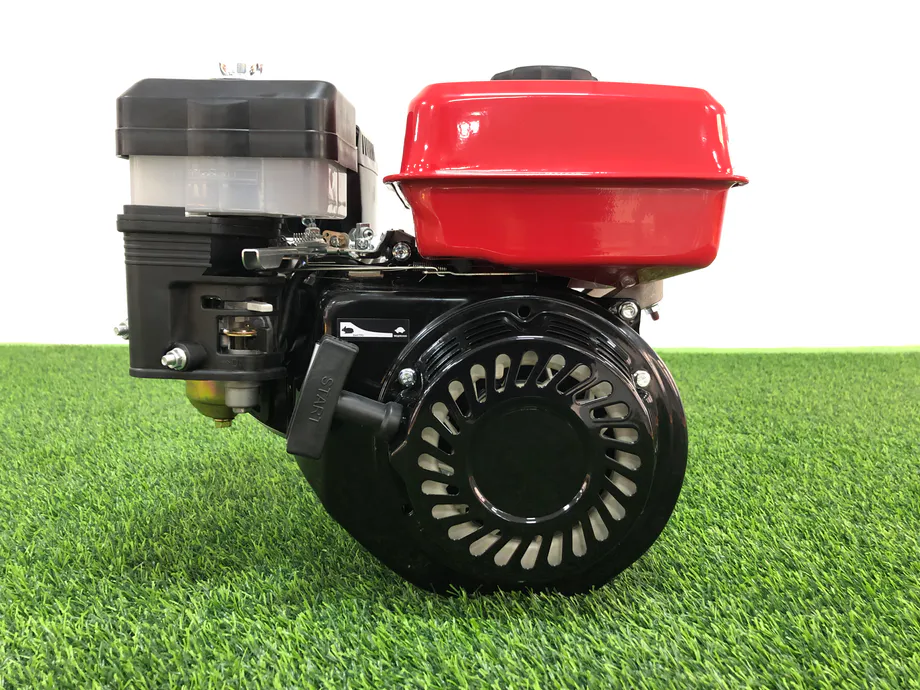

GZ170F gasoline engine

GZ170F

Share your application and the model of the equipment to be matched so we can check specifications, interfaces and order quantities. Configuration and compatibility require technical confirmation.

Technical configuration

Engine type

Single cylinder, 4-stroke

Bore × stroke

70 × 54 mm

Displacement

212 cc

Maximum output

7.5 HP / 3600 rpm

Maximum torque

11 N·m / 2500 rpm

Fuel type

Unleaded gasoline, RON 90 or higher

Fuel consumption

≤380 g/kW·h

Fuel tank capacity

3.6 L

Overall dimensions

410 × 360 × 390 mm

Net weight

13–16 kg

Engine, implement and wheel configurations may vary by order. Confirm the final specification before purchasing.
